IP Security (IPSec)

Overview

IPSec kernel support

IPSec network setup

Some example IPSec configurations

Commercial IPSec products

Windows IPSec client products



Overview

IP Security (IPSec) is the encryption of network traffic. You cannot encrypt the header information or trailer (i.e. the IP address/port the packet is from, and going to, the CRC checksums, and so on), but you can encrypt the data payload. This allows you to secure protocols such as POP/WWW without having to change them in any ways, since the encryption occurs at the IP level. It also allows you to securely connects LANs and clients to each other over insecure networks (like the Internet). Currently IPSec for Linux is in testing, however there have been several stable releases, and I myself have deployed Linux based IPSec servers successfully. IPSec is a standard, and a part of the IPv6 protocol, you can already purchase IPSec software for Windows 95/98/NT, Solaris, and other unices that will interoperate with Linux IPSec. For "drilling" through a firewall or perhaps to get by a NAT box (such as Linux with IP Masquerading) please see the firewall section.

IPSec kernel support

To use IPSec you need IPSec support in the kernel. Unfortunately no American Linux distribution can ship strong crypto outside of North America so generally speaking they choose not to include it at all, of the foreign Linux distributions, currently, none ship with IPSec support built into the kernel. You will need to get the kernel source (I recommend 2.2.13, as of December 1999), and the Linux IPSec source code, available from: https://www.freeswan.org/ (current stable snapshot 1.2, as of December 1999).

Install the kernel source (usually to /usr/src/linux) and then compile a new kernel, install it, boot to it, and test it. Make sure your networks work properly, if they don’t work, getting IPSec to work will be impossible. Now you need to download the latest IPSec software (version 1.0 will NOT work with 2.2.x kernels). Then go to /usr/local/src (or wherever you put your source code for programs), unpack the source and run the install program (make menugo typically for the ncurses based configuration). This will patch the kernel files, then run the kernel configuration, and then build the IPSec tools, and the kernel.

cd /usr/local/src/
tar –zvvxf /path/to/tarball/snapshot.tar.gz
chown –R root:root freeswan-snap1999Jun14b
cd freeswan-snap1999Jun14b
make menugo

make sure you save the kernel configuration, even though the options are chosen they have not been saved. You might also have to rebuild the kernel as the "make menugo" command sometimes runs a "make zImage" which usually fails due to the large kernel sizes with 2.2.x. Once the compile is done it should have an error message or two, simply:

cd /usr/src/linux
make bzImage
cp /usr/src/linux/arch/i386/boot/bzImage /boot/vmlinuz-2.2.13-ipsec

Now we need to edit lilo.conf, rerun lilo, and reboot to make use of the new kernel. lilo.conf should look like:

boot=/dev/hda
map=/boot/map
install=/boot/boot.b
prompt
timeout=100
image=/boot/vmlinuz-2.2.13-ipsec
label=linux-ipsec
root=/dev/hda1
read-only
image=/boot/vmlinuz-2.2.13
label=linux
root=/dev/hda1
read-only

rerun lilo and you should see:

linux-ipsec *
linux

then reboot and you should be running kernel 2.2.13 with IPSec support. As the machine reboots and starts the IPSec stuff you will see several errors, by default IPSec is set to use the eth999 interface, which of course does not exist. You should also add /usr/local/lib/ipsec to your path statement or else you will have to type the full path in a lot.

IPSec network setup

You will need to enable TCP-IP forwarding on the gateway server, in Red Hat Linux this is accomplished by changing the line in /etc/sysconfig/network from:

FORWARD_IPV4="false”

to:

FORWARD_IPV4="yes"

or you can enable it via the /proc filesystem:

cat 1 > /proc/sys/net/ipv4/ip_forward

Since most people have default deny policies for forwarding packets you will need to allow packets to traverse from the remote network / machine to your network / machine and vice versa. In addition to this, any masquerading rules for internal networks that are also using IPSec must come after the rules allowing IPSec related traffic, or the machine will try to masquerade the packets, instead of them being passed over to IPSec.

IPSec configuration

Then you need to configure your ipsec settings. These are typically held in /etc/ipsec.conf, and /etc/ipsec.secrets, you can use an include statement however to break the files up.

Manual connection keying

First we’ll set up a link using manual keying (for simplicity), you will need to edit ipsec.conf, and your firewall rules. Most of the defaults in the ipsec.conf file are fine but you will need to change the following:

conn sample
type=tunnel
left=
leftnexthop=
leftsubnet=
right=
rightnexthop=
rightsubnet=
spibase=0x200
esp=3des-md5-96
espenckey=
espauthkey=

replace the espenckey and espauthkey with new keys (using ranbits to generate a number, remember to leave the leading 0x that specifies it is a hex number) so that it looks like:

conn my-tunnel
type=tunnel
left=1.2.3.4
leftnexthop=1.2.3.1
leftsubnet=10.0.0.0/24
right=5.6.7.8
rightnexthop=5.6.7.1
rightsubnet=192.168.0.0/24
spibase=0x200
esp=3des-md5-96
espenckey=some_auth_key_here (ranbits 192)
espauthkey=some_other_key_here (ranbits 128)

Once you have done this copy the files ipsec.conf and ipsec.secrets from the machine you edited them on to the other server in a secure manner. Now all that remains to be done is the addition of some firewall rules so that packets do not get masqueraded (instead we simply want them forwarded).

On Server 1.2.3.4 you should add the following rules:

ipchains -A forward -p all -j ACCEPT -s 10.0.0.0/24 -d 192.168.0.0/24
ipchains -A forward -p all -j ACCEPT -s 192.168.0.0/24 -d 10.0.0.0/24

make sure these rules appear before the masquerading rule, it should look like this:

#
# FORWARD RULES
#
ipchains -P forward DENY
#
ipchains -A forward -p all -j ACCEPT -s 10.0.0.0/24 -d 192.168.0.0/24
ipchains -A forward -p all -j ACCEPT -s 192.168.0.0/24 -d 10.0.0.0/24
ipchains -A forward -p all -j MASQ -s 10.0.0.0/24 -d 0.0.0.0/0

And on server 5.6.7.8 you basically repeat the process:

ipchains -A forward -p all -j ACCEPT -s 192.168.0.0/24 -d 10.0.0.0/24
ipchains -A forward -p all -j ACCEPT -s 10.0.0.0/24 -d 192.168.0.0/24

make sure these rules appear before the masquerading rule, it should look like this:

#
# FORWARD RULES
#
ipchains -P forward DENY
#
ipchains -A forward -p all -j ACCEPT -s 192.168.0.0/24 -d 10.0.0.0/24
ipchains -A forward -p all -j ACCEPT -s 10.0.0.0/24 -d 192.168.0.0/24
ipchains -A forward -p all -j MASQ -s 192.168.0.0/24 -d 0.0.0.0/0

Now you should be able to bring up the ipsec tunnel on both machines manually and the machines on Network A should be able to talk to the machines on Network B with no problems.

ipsec manual –up my-tunnel

and it should produce output similar to:

/usr/local/lib/ipsec/spi: message size is 36
/usr/local/lib/ipsec/spi: message size is 132
/usr/local/lib/ipsec/spi: message size is 132

To test it try pinging 192.168.0.2 from the 10.0.0.2 client. If this works then you have set it up correctly. If it does not work check your network to make sure 1.2.3.4 can reach 5.6.7.8, and that TCP-IP forwarding is enabled, and make sure that no firewall rules are blocking the packets, or trying to masquerade them. Once you have established a connection and tested it successfully you should move to automatic keying (especially if it’s in a production environment).

Automatic connection keying

If you intend to use IPSec in a production environment, manual keying is a bad idea generally speaking. With automatic keying you have a 256 bit shared secret you copy to both ends of the tunnel, which is then used during the key exchanges to make sure a man in the middle attack does not occur. With automatic keying the default lifetime of a key is 8 hours, which you can set to anything you like, and if someone manages to brute force the key, it is only good for that 8 hour chunk of traffic. The following example builds on the previous one:

ipsec.secrets contains the shared secret. This file must be kept secure at all costs. For a connection between the 1.2.3.4 and 5.6.7.8 servers you would need a line like:

1.2.3.4 5.6.7.8 “0xa3afb7e6_20f10d66_03760ef1_9019c643_a73c7ce0_91e46e84_ef6281b9_812392bf”

This line needs to be in the ipsec.secrets file of both computers. You would then need to edit the tunnel configuration in ipsec.conf to the following:

conn my-tunnel
type=tunnel
left=1.2.3.4
leftnexthop=1.2.3.1
leftsubnet=10.0.0.0/24
right=5.6.7.8
rightnexthop=5.6.7.1
rightsubnet=192.168.0.0/24
keyexchange=ike
keylife=8h
keyingtries=0

The pluto daemon will then startup, try to connect to the Pluto daemon at the other end of the tunnel, and establish a connection. One caveat, Pluto runs on port 500, UDP, so chances are you will have to poke a hole in your firewall to allow it through:

ipchains -A input -p udp -j ACCEPT -s 0.0.0.0/0 -i eth0 -d 0.0.0.0/0 500

I find it convenient to use the “%search” keyword instead of listing the tunnel to bring up, by adding:

auto=start

to each tunnel configuration and editing ipsec.secrets:

plutoload=%search
plutostart=%search

This will make your life generally easier in the long run. If all goes well you should see something like this in /var/log/messages:

Jun 26 02:10:41 server ipsec_setup: Starting FreeS/WAN IPSEC...
Jun 26 02:10:41 server ipsec_setup: /usr/local/lib/ipsec/spi: message size is 28.
Jun 26 02:10:41 server ipsec_setup: KLIPS debug `none'
Jun 26 02:10:41 server ipsec_setup: KLIPS ipsec0 on eth0 1.2.3.4/255.255.255.0 broadcast 24.108.11.255 Jun 26 02:10:42 server ipsec_setup: Disabling core dumps:
Jun 26 02:10:42 server ipsec_setup: Starting Pluto (debug `none'):
Jun 26 02:10:43 server ipsec_setup: Loading Pluto database `my-tunnel':
Jun 26 02:10:44 server ipsec_setup: Enabling Pluto negotiation:
Jun 26 02:10:44 server ipsec_setup: Routing for Pluto conns `my-tunnel':
Jun 26 02:10:45 server ipsec_setup: Initiating Pluto tunnel `my-tunnel':
Jun 26 02:10:45 server ipsec_setup: 102 "my-tunnel" #1: STATE_MAIN_I1: initiate
Jun 26 02:10:45 server ipsec_setup: 104 "my-tunnel" #1: STATE_MAIN_I2: from STATE_MAIN_I1; sent MI2, expecting MR2
Jun 26 02:10:45 server ipsec_setup: 106 "my-tunnel" #1: STATE_MAIN_I3: from STATE_MAIN_I2; sent MI3, expecting MR3
Jun 26 02:10:45 server ipsec_setup: 003 "my-tunnel" #1: STATE_MAIN_I4: SA established
Jun 26 02:10:45 server ipsec_setup: 110 "my-tunnel" #2: STATE_QUICK_I1: initiate
Jun 26 02:10:45 server ipsec_setup: 003 "my-tunnel" #2: STATE_QUICK_I2: SA established Jun 26 02:10:46 server ipsec_setup: ...FreeS/WAN IPSEC started

And in the /var/log/secure file you should see something like:

Jun 26 02:10:42 server Pluto[25157]: Starting Pluto (FreeS/WAN Version snap1999Jun14b)
Jun 26 02:10:44 server Pluto[25157]: added connection description "my-tunnel"
Jun 26 02:10:44 server Pluto[25157]: listening for IKE messages
Jun 26 02:10:44 server Pluto[25157]: adding interface ipsec0/eth0 1.2.3.4Jun 26 02:10:44 server Pluto[25157]: loading secrets from "/etc/ipsec.secrets"
Jun 26 02:10:45 server Pluto[25157]: "my-tunnel" #1: initiating Main Mode
Jun 26 02:10:45 server Pluto[25157]: "my-tunnel" #1: ISAKMP SA established
Jun 26 02:10:45 server Pluto[25157]: "grumpy-seifried" #2: initiating Quick Mode POLICY_ENCRYPT+POLICY_TUNNEL+POLICY_PFS
Jun 26 02:10:45 server Pluto[25157]: "my-tunnel" #2: sent QI2, IPsec SA established
Jun 26 02:11:12 server Pluto[25157]: "my-tunnel" #3: responding to Main Mode
Jun 26 02:11:12 server Pluto[25157]: "my-tunnel" #3: sent MR3, ISAKMP SA established
Jun 26 02:11:12 server Pluto[25157]: "my-tunnel" #4: responding to Quick Mode
Jun 26 02:11:12 server Pluto[25157]: "my-tunnel" #4: IPsec SA established
Jun 26 02:31:31 server Pluto[25157]: "my-tunnel" #5: responding to Main Mode
Jun 26 02:31:32 server Pluto[25157]: "my-tunnel" #5: sent MR3, ISAKMP SA established
Jun 26 02:31:32 server Pluto[25157]: "my-tunnel" #6: responding to Quick Mode
Jun 26 02:31:32 server Pluto[25157]: "my-tunnel" #6: IPsec SA established

In addition to this you can view the “eroute” output to make sure the tunnels are correctly configured:

10.0.0.0/24 -> 192.168.0.0/24 => tun0x114@1.2.3.4

And if you view your routes (“route”) you should see:

Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
1.2.3.4 0.0.0.0 255.255.255.255 UH 0 0 0 eth0
10.0.0.1 0.0.0.0 255.255.255.255 UH 0 0 0 eth
11.2.3.0 0.0.0.0 255.255.255.0 U 0 0 0 eth0
1.2.3.0 0.0.0.0 255.255.255.0 U 0 0 0 ipsec0
192.168.0.0 1.2.3.1 255.255.255.0 UG 0 0 0 ipsec0
10.0.0.0 0.0.0.0 255.255.255.0 U 0 0 0
eth1127.0.0.0 0.0.0.0 255.0.0.0 U 0 0 0
lo0.0.0.0 1.2.3.1 0.0.0.0 UG 0 0 0 eth0

Some example ipsec configurations

Two servers with protected networks directly attached

In our example we will have the following network setup:

Server A, where eth0 is attached to the Internet and has the IP address 1.2.3.4, and eth1 is attached to the internal network and has the IP address 10.0.0.1.

Network A is the network ‘behind’ Server A and consists of machines on the 10.0.0.* subnet.

Server B, where eth0 is attached to the Internet and has the IP address 5.6.7.8, and eth1 is attached to the internal network and has the IP address 192.168.0.1.

Network B is the network ‘behind’ Server B and consists of machines on the 192.168.0.* subnet.

Network C is the Internet, to which Server A and B are connected (by T1, let’s be generous).

Basic server setup

Each machine will have Red Hat Linux 6.1 installed, with the default kernel 2.2.12, make sure you install ipchains, by default this does not usually get installed. Any other software on the machines is incidental (we are primarily concerned about moving packets and such).

Go to ftp.linux.org (or your favourite mirror) and download the full Linux kernel 2.2.10. Go to /usr/src/ and remove the existing linux symlink, unpack kernel 2.2.10 and mv it to /usr/src/linux-2.2.10, and recreate the "linux" symlink to point to it. Then cd into /usr/src/linux, configure the kernel, compile and install it. Make sure you choose all the IP masquerading items, and where possible compile them in as static components, and not modules. Remember to use "make bzImage", as chances are the new kernel will be to large for lilo to load normally.

cd /usr/src/
rm linux
tar –zvvxf /path/to/tarball/linux-2.2.10.tar.gz
mv linux linux-2.2.10
chown –R root:root linux-2.2.10
ln –s linux-2.2.10 linux
cd linux
make menuconfig
make dep
make bzImage
make modules
make modules_install
cp /usr/src/linux/arch/i386/boot/bzImage /boot/vmlinuz-2.2.10
rm /boot/System.*
cp /usr/src/linux/System.map /boot/System.map

Now we need to edit lilo.conf, rerun lilo, and reboot to make use of the new kernel. Like the IPSec documentation stresses, make sure your network works first before even attempting to install the software.

Lilo.conf should look like:

boot=/dev/hda
map=/boot/map
install=/boot/boot.b
prompt
timeout=100
image=/boot/vmlinuz-2.2.10
label=linux
root=/dev/hda1
read-only
image=/boot/vmlinuz-2.2.5-12
label=linuxold
root=/dev/hda1
read-only

rerun lilo and you should see:

linux *
linuxold

then reboot and you should be running kernel 2.2.10.

Now we need to edit the firewall rules, on both servers you should be masquerading the internal machines and using a default policy of denying forwarding for security with something like:

Server A:

ipchains -P forward DENY
ipchains -A forward -p all -j MASQ -s 10.0.0.0/24 -d 0.0.0.0/0

Server B:

ipchains -P forward DENY
ipchains -A forward -p all -j MASQ -s 192.168.0.0/24 -d 0.0.0.0/0

Remember to put these rules last in your firewalling script. You will also need to enable packet forwarding, edit the /etc/sysconfig/network and replace the line:

FORWARD_IPV4="no"

with the line:

FORWARD_IPV4="yes"

You should now be able to ping Server B from Network A (ping 5.6.7.8), and you should also be able to ping Server A from Network B (ping 1.2.3.4).

Assuming all this works we can now attempt to install the IP Security software.

IPSec installation

Download the latest IPSec snapshot (version 1.0 will NOT work with 2.2.x kernels). Then go to /usr/local/src (or wherever), unpack the source and run the install program (make menugo typically for the ncurses based configuration). This will patch the kernel files, then run the kernel configuration, and then build the IPSec tools, and the kernel.

cd /usr/local/src/
tar –zvvxf /path/to/tarball/snapshot.tar.gz
chown –R root:root freeswan-snap1999Jun14b
cd freeswan-snap1999Jun14b
make menugo

make sure you save the kernel configuration, even though the options are chosen they have not been saved. You will also have to rebuild the kernel as the "make menugo" command runs a "make zImage" which usually fails due to the large kernel sizes with 2.2.x. Once the compile is done it should have an error message or two, simply:

cd /usr/src/linux
make bzImage
cp /usr/src/linux/arch/i386/boot/bzImage /boot/vmlinuz-2.2.10-ipsec

Now we need to edit lilo.conf, rerun lilo, and reboot to make use of the new kernel.

Lilo.conf should look like:

boot=/dev/hda
map=/boot/map
install=/boot/boot.b
prompt
timeout=100
image=/boot/vmlinuz-2.2.10-ipsec
label=linux-ipsec
root=/dev/hda1
read-only
image=/boot/vmlinuz-2.2.10
label=linux
root=/dev/hda1
read-only

rerun lilo and you should see:

linux-ipsec *
linux

then reboot and you should be running kernel 2.2.10 with IPSec support. As the machine reboots and starts the IPSec stuff you will see several errors, by default IPSec is set to use the eth999 interface, which of course does not exist. You should also add /usr/local/lib/ipsec to your path statement or else you will have to type the full path in a lot.

Configuring IPSec

We will initially use manual keying (i.e. for now we will ignore the pluto IKE daemon) as this makes life simpler. You will need to edit ipsec.conf and ipsec.conf. These two files will then need to be copied to the other server in a secure manner (ssh, floppy disk, etc.).

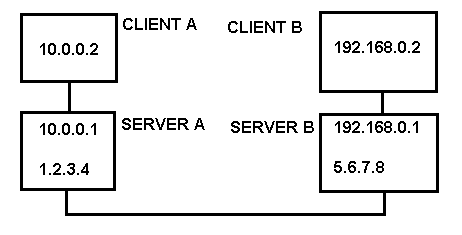

Here is a diagram of the network:

You will need to edit the ipsec.conf file, most of the defaults are fine but you will need to change the following:

conn sample
type=tunnel
# left security gateway (public-network address)
left=
# next hop to reach right
leftnexthop=
# subnet behind left (omit if there is no subnet)
leftsubnet=
# right s.g., subnet behind it, and next hop to reach left
right=
rightnexthop=
rightsubnet=
#
spibase=0x200
# (manual) encryption/authentication algorithm and parameters to it
esp=3des-md5-96
espenckey=
espauthkey=

replace the espenckey and espauthkey with new keys (using ranbits to generate a number, remmeber to leave the leading 0x that specifies it is a hex number) so that it looks like:

conn my-tunnel
type=tunnel
# left security gateway (public-network address)
left=1.2.3.4
# next hop to reach right
leftnexthop=1.2.3.1
# subnet behind left (omit if there is no subnet)
leftsubnet=10.0.0.0/24
# right s.g., subnet behind it, and next hop to reach left
right=5.6.7.8
rightnexthop=5.6.7.1
rightsubnet=192.168.0.0/24
#
spibase=0x200
# (manual) encryption/authentication algorithm and parameters to it
esp=3des-md5-96
espenckey=some_auth_key_here (ranbits 192)
espauthkey=some_other_key_here (ranbits 128)

Once you have done this copy the files ipsec.conf and ipsec.secrets from the machine you edited them on to the other server in a secure manner. Now all that remains to be done is the addition of some firewall rules so that packets do not get masqueraded (instead we simply want them forwarded).

On Server A you should add the following rules:

ipchains -A forward -p all -j ACCEPT -s 10.0.0.0/24 -d 192.168.0.0/24
ipchains -A forward -p all -j ACCEPT -s 192.168.0.0/24 -d 10.0.0.0/24

make sure these rules appear before the masquerading rule, it should look like this:

#
# FORWARD RULES
#
ipchains -P forward DENY
#
ipchains -A forward -p all -j ACCEPT -s 10.0.0.0/24 -d 192.168.0.0/24
ipchains -A forward -p all -j ACCEPT -s 192.168.0.0/24 -d 10.0.0.0/24
ipchains -A forward -p all -j MASQ -s 10.0.0.0/24 -d 0.0.0.0/0

And on server B you basically repeat the process:

ipchains -A forward -p all -j ACCEPT -s 192.168.0.0/24 -d 10.0.0.0/24
ipchains -A forward -p all -j ACCEPT -s 10.0.0.0/24 -d 192.168.0.0/24

make sure these rules appear before the masquerading rule, it should look like this:

#
# FORWARD RULES
#
ipchains -P forward DENY
#
ipchains -A forward -p all -j ACCEPT -s 192.168.0.0/24 -d 10.0.0.0/24
ipchains -A forward -p all -j ACCEPT -s 10.0.0.0/24 -d 192.168.0.0/24
ipchains -A forward -p all -j MASQ -s 192.168.0.0/24 -d 0.0.0.0/0

Starting up your connection

Now you should be able to bring up the ipsec tunnel on both machines manually and the machines on Network A should be able to talk to the machines on Network B with no problems.

ipsec manual –up my-tunnel

and it should produce output similar to:

/usr/local/lib/ipsec/spi: message size is 36
/usr/local/lib/ipsec/spi: message size is 132
/usr/local/lib/ipsec/spi: message size is 132

To test it try pinging 192.168.0.2 from the 10.0.0.2 client (you cannot ping from 192.168.0.1 to 10.0.0.1 or the external gateway addresses since you have not configured tunnels to handle those packets). If this works then you have set it up correctly.



Two servers with protected networks attached via the Internet (or some other network)

In this example I will strictly cover the configuration and not the isntall as in the last one.

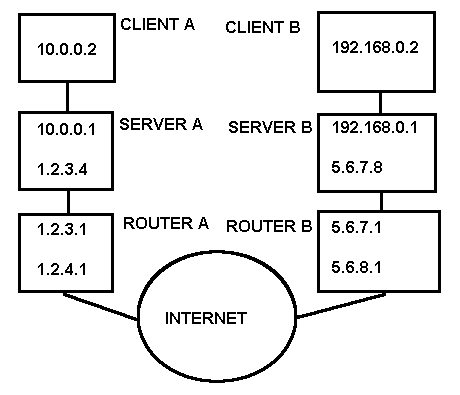

Here is a diagram of the network:









Commercial IPSec products

I thought it would also be appropriate to list commercial IPSec products briefly, with an emphasis of course on those based on Linux and FreeS/WAN.

i-data

i-data makes a line of products including a VPN server, based on Linux and FreeS/WAN. They are located in Denmark, making their product available world-wide. Their website is at: https://www.i-data.com/networks/.

Windows IPSec client products

There are also a number of software packages to give Windows IPSec capability, one of which is even free.

PGP VPN

The makers of PGP (Network Associates) have now created a “PGP VPN” software package (which has very little to do with PGP). It supports IPSec and has been reported as inter-operable with Linux FreeS/WAN. You can get it from: https://www.nai.com/asp_set/products/tns/pgp_vpn.asp. The free version of PGP from NAI also supports IPSec VPN's and is available from: https://www.pgpi.com/.

IRE

https://www.ire.com/



Back

Security Portal

Written by Kurt Seifried
